What is a point cloud?

A point cloud is a collection of three-dimensional point coordinates. The SkEyesBox generates point clouds that are representative of the environment by systematically shining a low-profile laser beam at objects and measuring the distance, based on the light's time-of-flight, to the illuminated object from a known position and orientation in space. The SkEyesBox scans the laser in a straight line that is orthogonal to the direction of travel which is sometimes referred to as the push-broom configuration. Firing the laser about 100,000 times per second, the SkEyesBox records its position and orientation as well as the angle of the mirror scanning the laser in precise (~ 1 microsecond) synchronization. Using this information, the SkEyesBox can then estimate the absolute global position of reflecting points in real time. Depending on the system configuration, the SkEyesBox also tracks the laser reflection intensity as well as the ambient color of the reflecting point in space.


Point cloud data example

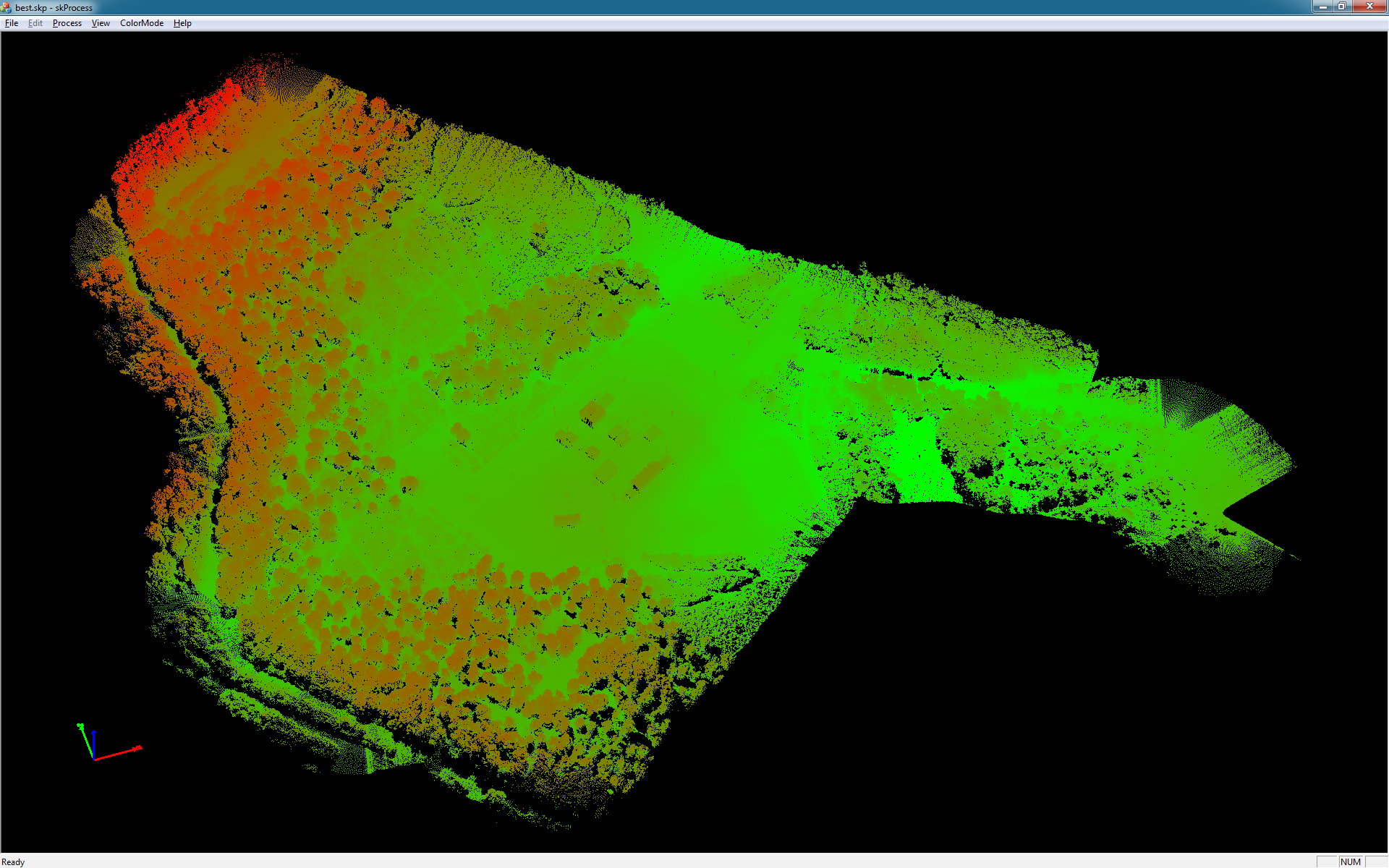

Coloring based on altitude

Higher altitude is red and lower altitude is green.

Height

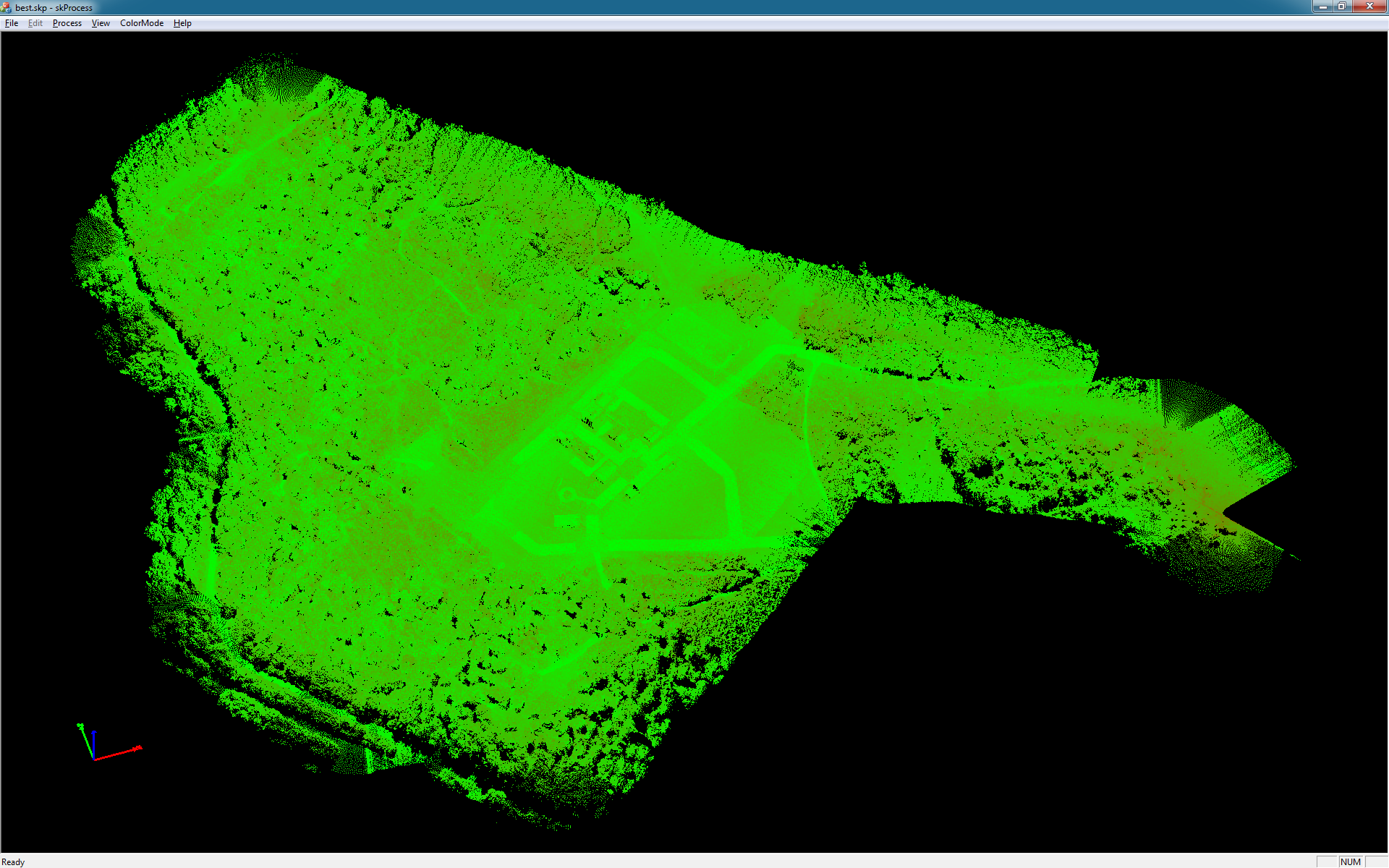

Coloring based on laser reflection intensity

High reflective intensity is red and low intensity is green. The dark asphalt road is green because of its low reflectivity.

Amp

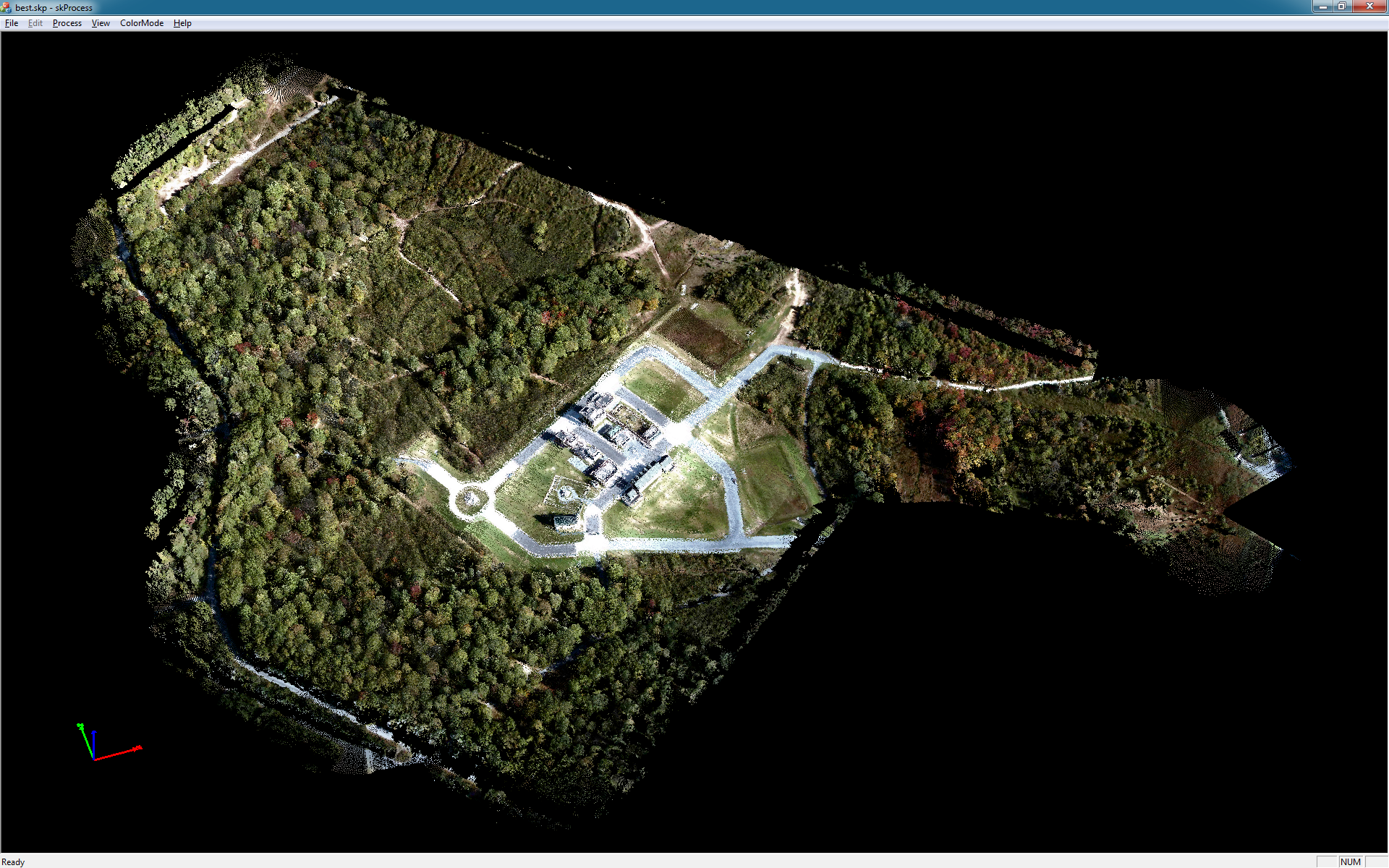

Coloring using camera images

The reflected points are colorized using sensed color by a camera image.

Color

Flight Path

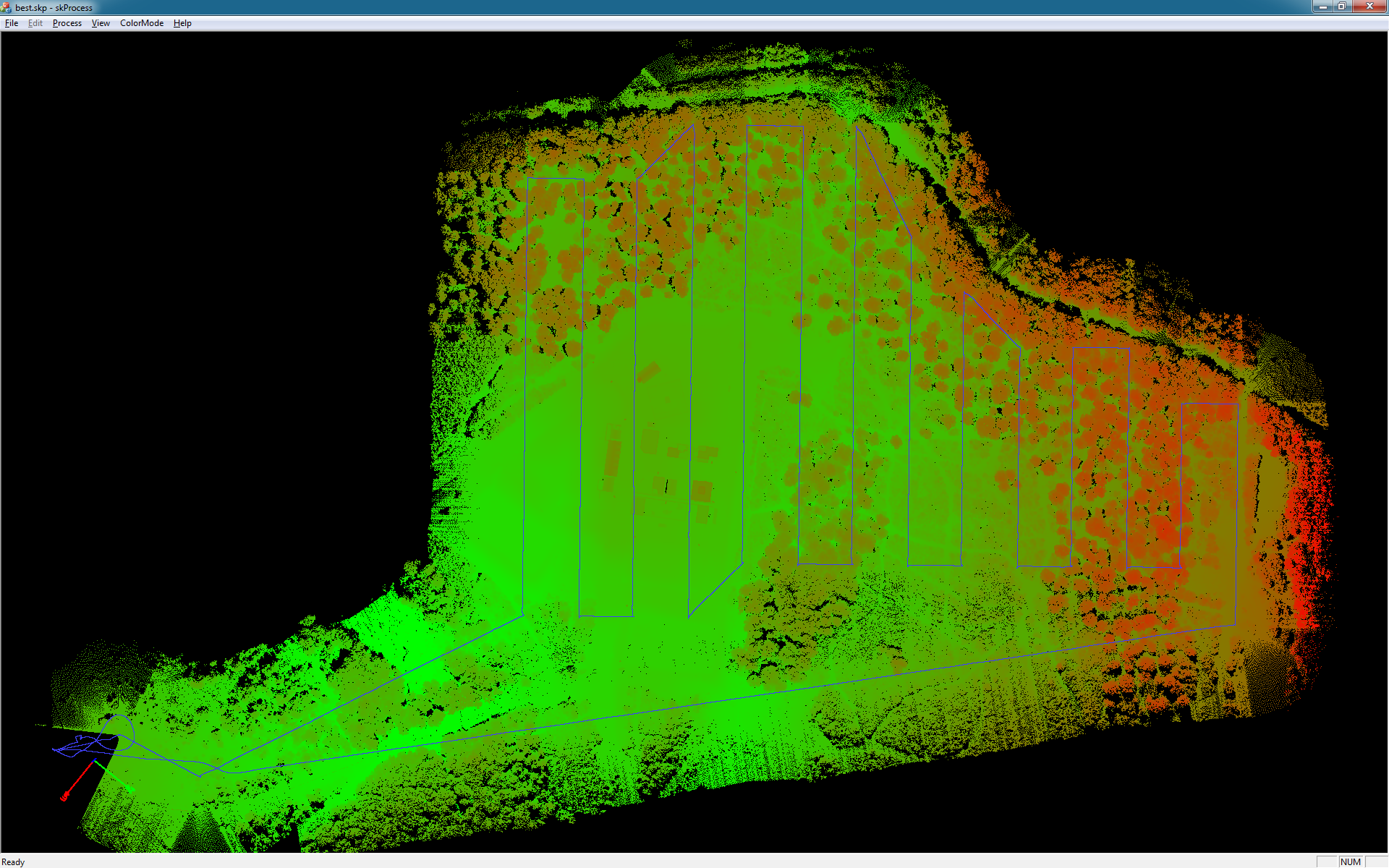

The blue line is the flight trajectory as flown by the SkEyesBox auto-pilot. The system maintained a 50 m distance to the ground during the data collection flight. The horizontal position of the waypoints were selected in advance. The data collection flight duration was 35 minutes which included the round-trip travel time to the measurement start/end point.

Path

Pulse Mode

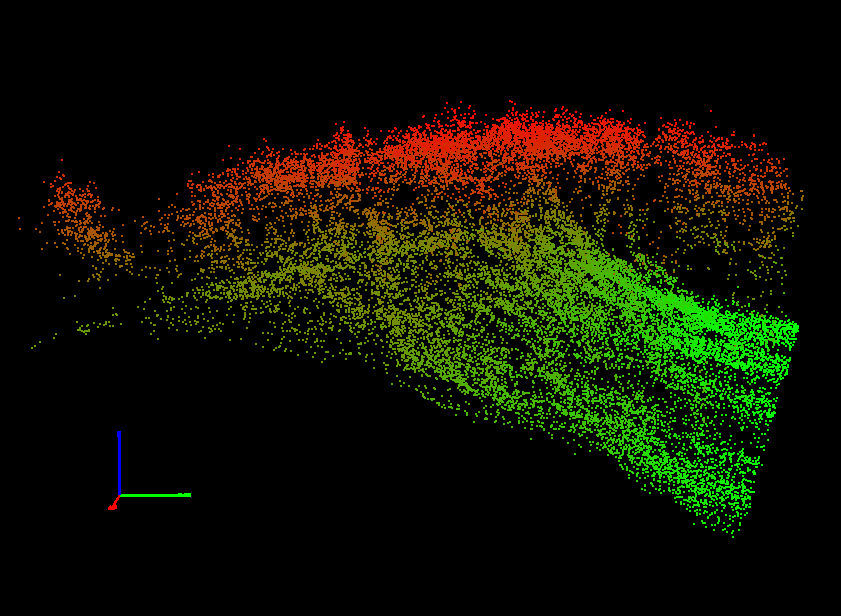

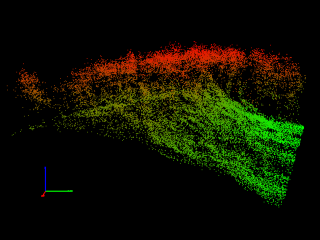

The SkEyesBox tracks up to 4 laser reflections as well as the last reflection for each laser sample. This allows penetration through foliage to see the ground.

Tree
