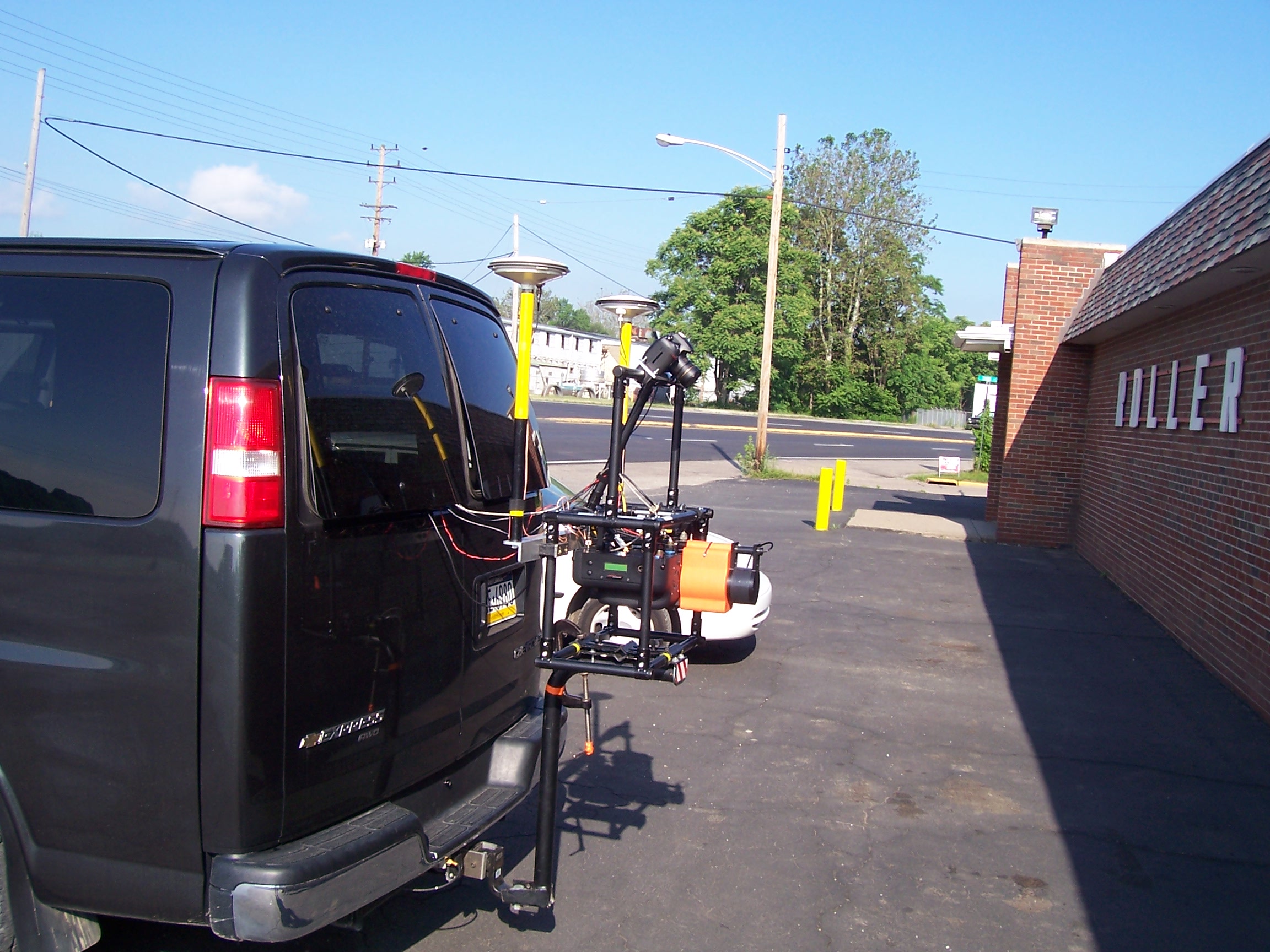

In this configuration, the system was tasked to collect road surface damage data. The colorizer Nikon Camera was installed overlooking the road.
A second Nikon camera was installed on the right side to colorize structures on the right side of the road.

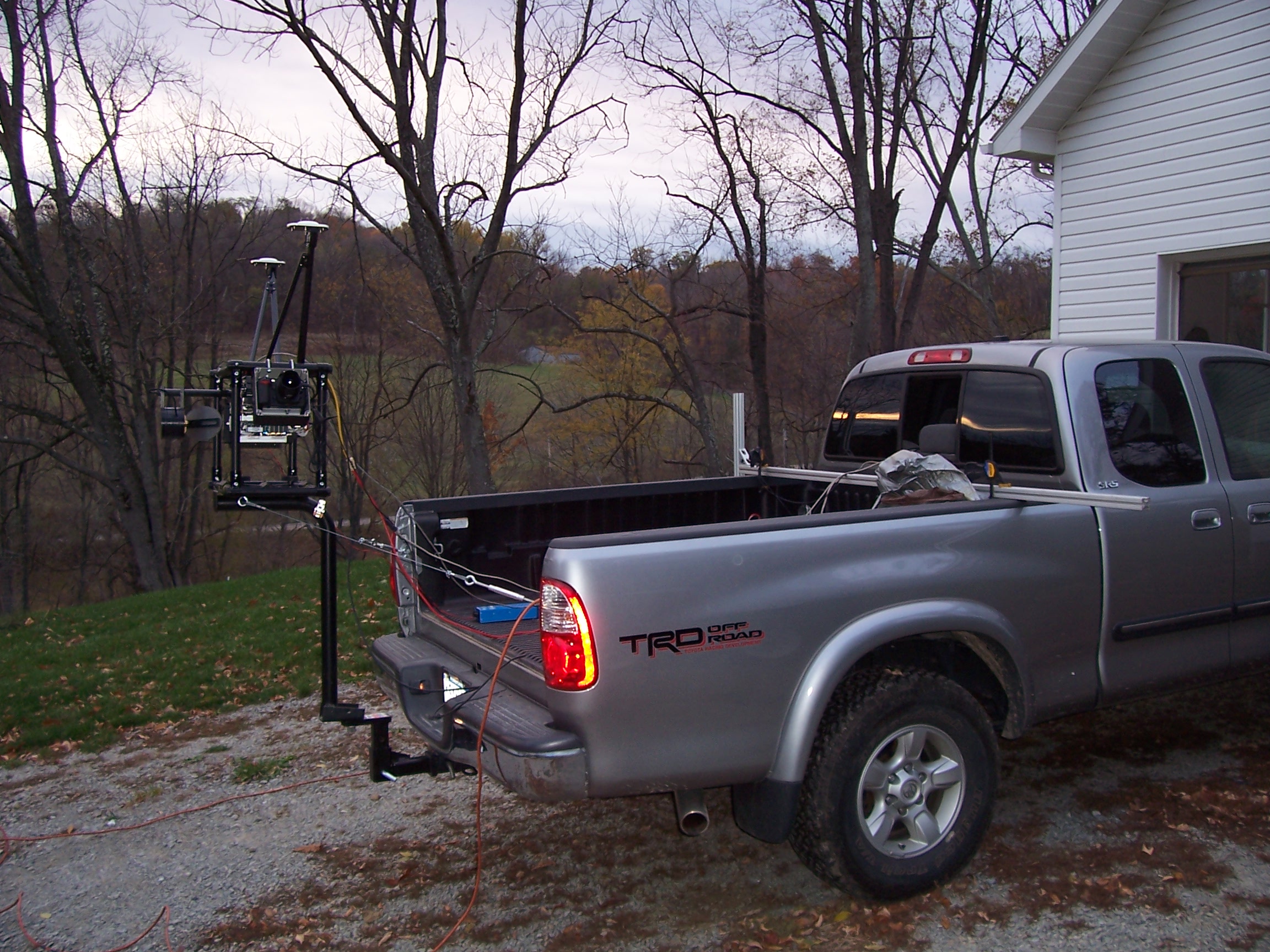

In this configuration, the system was tasked to collect data from electrical lines and trees in an effort to find areas problem areas where
tree branches are hitting the wires.
The colorizer Nikon camera is looking up at the side of the road.

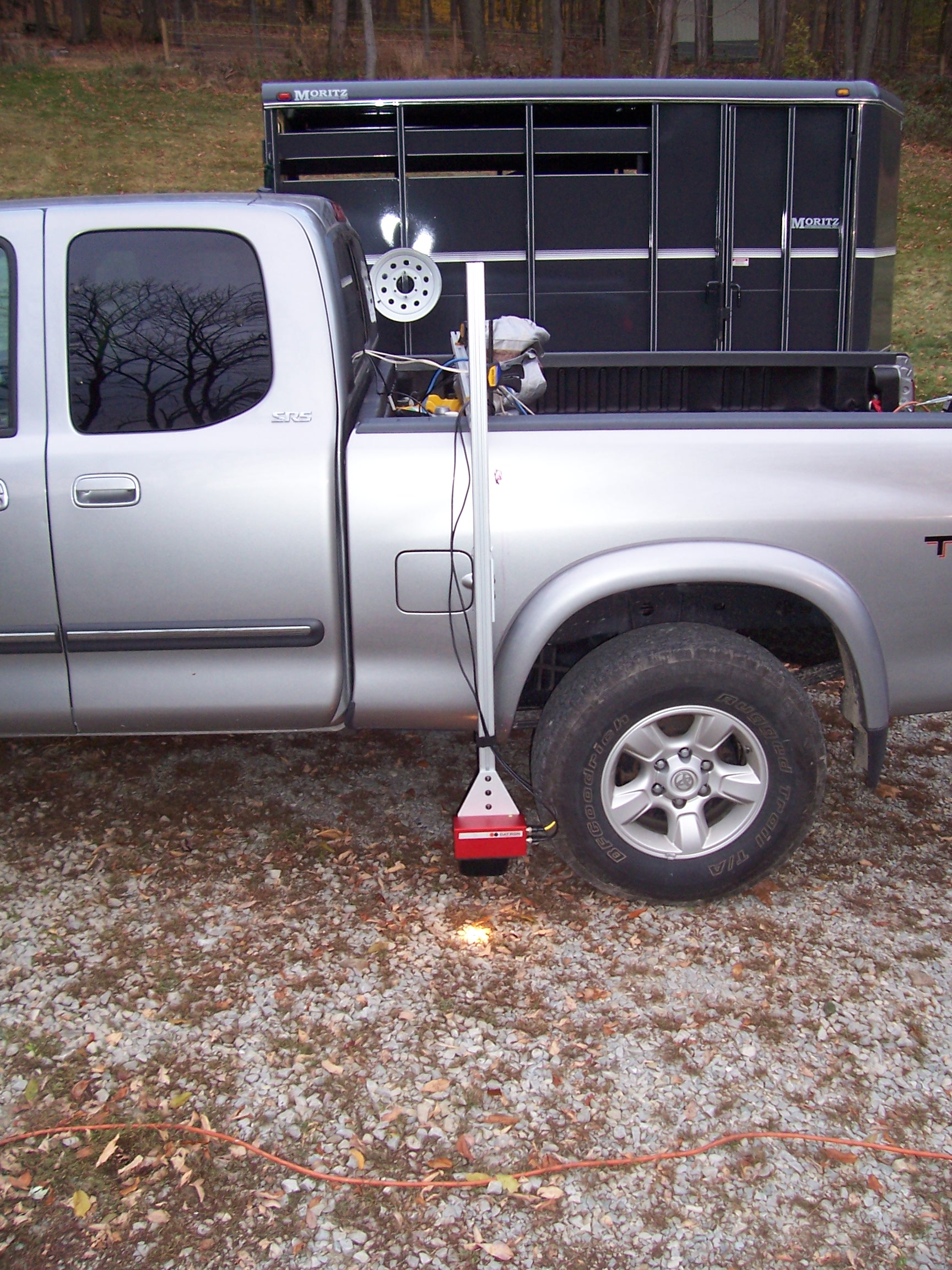

The red box near the center of the picture is the optical odometer which was directly connected to the SkEyesBox.
